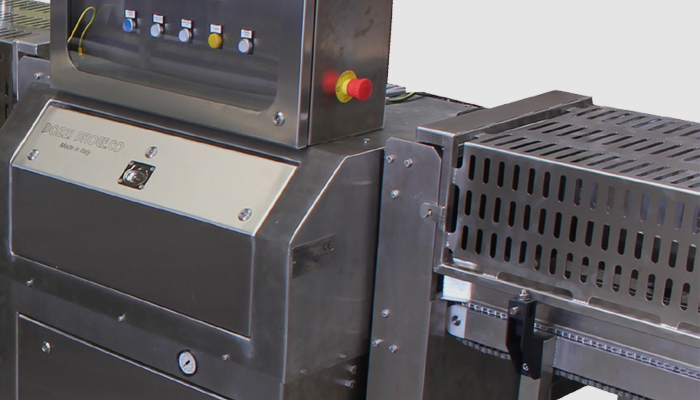

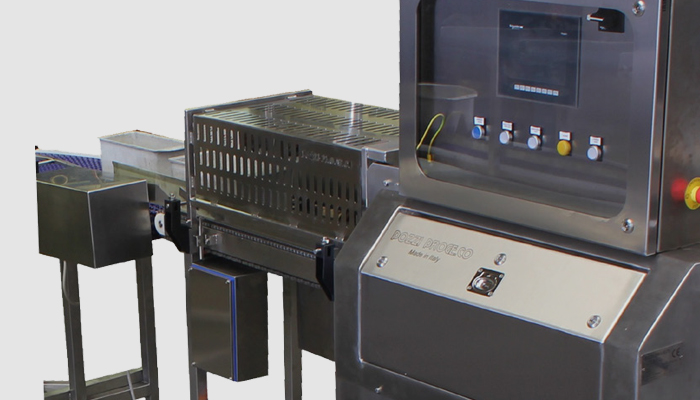

Super-compact new generation machine
ideal for removing air from hams
in the moulds.

Super-compact new generation machine
suitable for air removing of hams.

Removes any moulding defect
Holes that can contain gelatin,
thus slice cut will be cleaner.

Complete of electrical control equipment,
control by PLC, with load, unload conveyor belt
and solenoid valve for automatic vacuum exhaust.

The machine can be completely automated,
connecting by roller belts
the moulds table and the
automatic mould press.


Model Mold capacity Max hour output Dimension Installed power Kw
TV 03 AX 3 x ciclo/td> 350 pz/h 300x70x180 (H)cm 8,5 KW
TV 04 AX 4 x ciclo 450 pz/h 400X70X180 (H)cm 8,5 KW
TV 05 AX 5 x ciclo 600 pz/h 500x70x180 (H)cm 12 KW
TV 06 AX 6 x ciclo 700 pz/h 600x70x180 (H) cm 12 KW

Scarica la scheda tecnica: AIR REMOVING TUNNEL-TYPE TV
